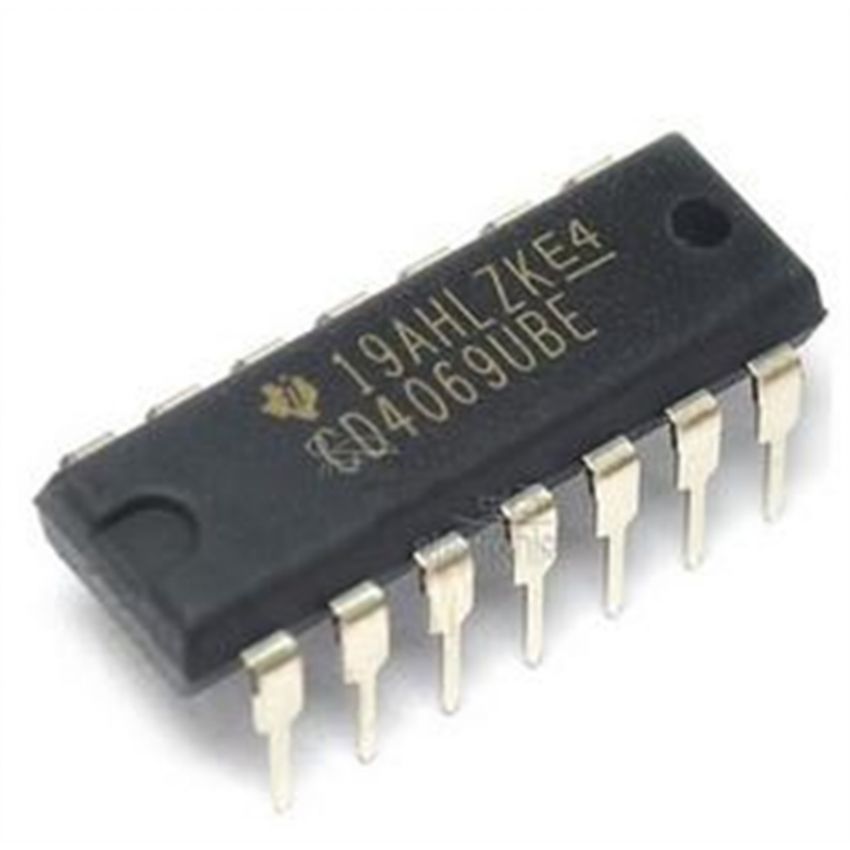

CD4069 - Hex Inverter
The CD4069 is a CMOS logic IC that contains six independent NOT gates (inverters). It offers high noise immunity and low power consumption and is widely used in digital logic applications for signal inversion and waveform generation.
Specifications:
- Logic Function: Hex Inverter (6 NOT gates)
- Supply Voltage Range: 3V to 15V
- High Noise Immunity: 0.45 VDD
- Maximum Input Current: ±1 µA at 25°C
- Low Power Consumption: CMOS technology
- Propagation Delay: ~60 ns at VDD = 10V
- Output Drive: ±1.0 mA at VDD = 10V
- Operating Temperature Range: -55°C to +125°C
- Package: 14-pin DIP or SOIC
Applications:
- Signal inversion
- Waveform generation
- Pulse shaping circuits
- Logic level shifting
- Oscillator circuits
