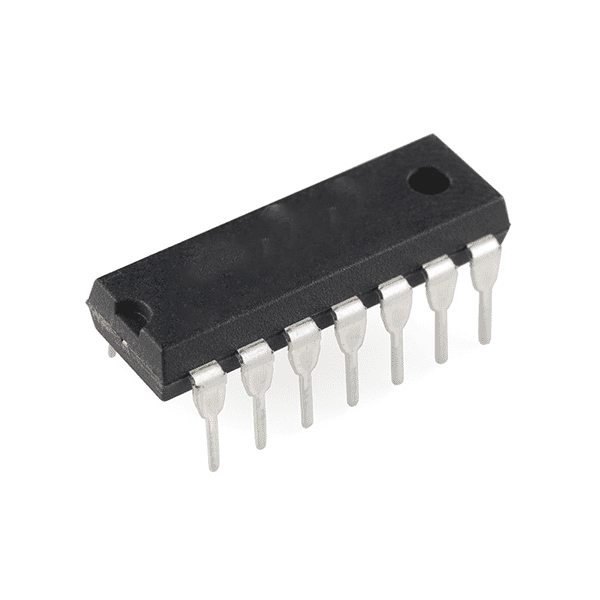

7408 Quad 2-Input AND Gate
The 7408 is a TTL logic IC that contains four independent 2-input AND gates. Each gate performs the logical AND operation, where the output is HIGH only if both inputs are HIGH. This IC is widely used in digital circuits for performing basic logic functions.
Specifications:
- Contains four independent 2-input AND gates
- Logic Function: Y = A ⋅ B
- Supply Voltage: 4.75V to 5.25V (typically 5V)
- Propagation Delay: ~10 ns
- Output Current: 16 mA (LOW), -0.4 mA (HIGH)
- Power Dissipation: ~10 mW per gate
- Operating Temperature Range: 0°C to +70°C
- Standard TTL logic levels
- Package: 14-pin DIP, SOIC
Applications:
- Digital logic design
- Control and automation circuits
- Signal verification
- Combinational logic circuits
- Gating and data flow management
