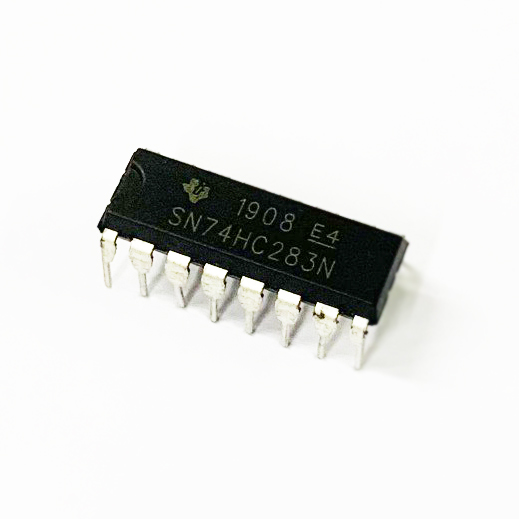

74HC283 4-Bit Binary Full Adder
The 74HC283 is a high-speed CMOS 4-bit binary full adder with carry input and carry output. It performs addition of two 4-bit binary numbers and can be cascaded to add larger binary words. The device provides fast and accurate arithmetic operations and is compatible with TTL input levels.
Specifications:
- 4-bit binary full adder with carry in and carry out
- Ripple-carry architecture
- Typical propagation delay: 13 ns at Vcc = 5V
- Supply voltage range: 2V to 6V
- Maximum output current: ±5.2 mA at 5V
- High noise immunity and low power consumption
- Carry generation across multiple adders (cascadable)
- Input compatibility: TTL and CMOS
- Operating temperature: -40°C to +85°C
- Package: 16-pin DIP, SOIC, or TSSOP
Applications:
- Binary arithmetic circuits
- Digital counters and registers
- Data path units in ALUs
- Signal processing and logic computation
- Educational and experimental digital logic projects
