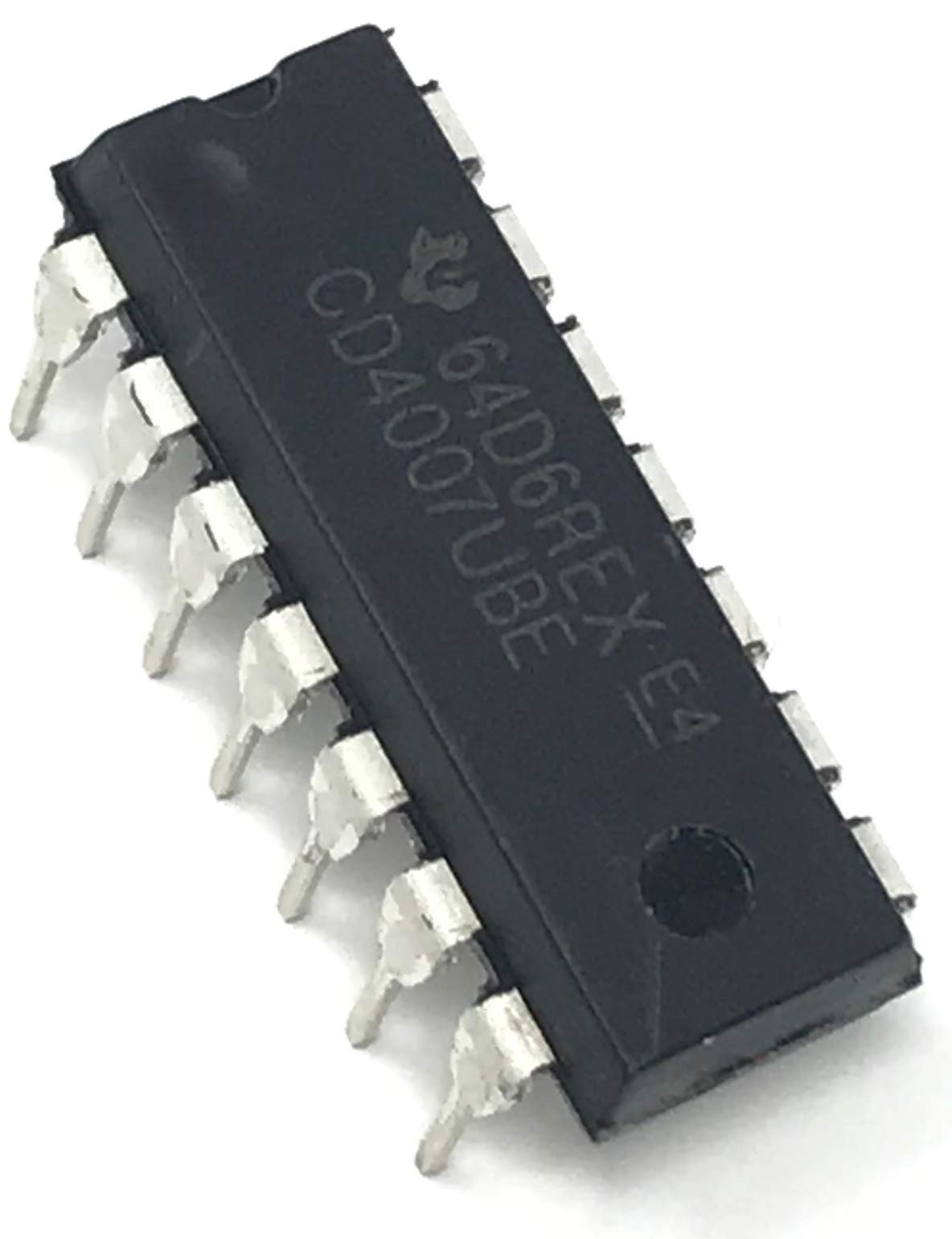

CD4007 CMOS Dual Complementary Pair Plus Inverter
The CD4007 is a CMOS IC that contains two complementary pairs of N- and P-channel MOSFET transistors, along with an inverter. It is commonly used in analog and digital circuits for switching, amplification, and logic design purposes.
Specifications:
- Contains 3 complementary pairs: 2 pairs plus 1 inverter
- Supply Voltage Range: 3V to 15V
- Input Leakage Current: ±0.1 µA at 25°C
- Quiescent Current: Typically < 1 µA
- High noise immunity: VNIH = 1.5V, VNIL = 1.5V at VDD = 5V
- Low power consumption due to CMOS technology
- Can be used to build logic gates, oscillators, and amplifiers
- Operating Temperature Range: -55°C to +125°C
- Package: 14-pin DIP or SOIC
Applications:
- Analog switches and inverters
- Voltage-controlled oscillators
- Digital logic building blocks
- Signal modulation and shaping circuits
- Custom CMOS logic design
