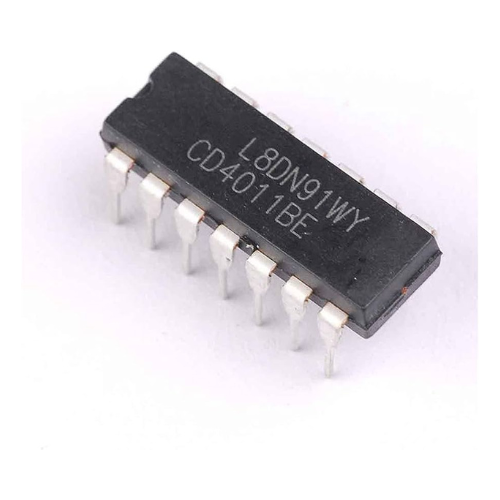

CD4011 Quad 2-Input NAND Gate
The CD4011 is a CMOS logic IC that contains four independent 2-input NAND gates. It is widely used in digital logic designs due to its wide voltage operating range and low power consumption.
Specifications:
- 4 independent 2-input NAND gates
- Logic Function: Y = ¬(A ⋅ B)
- Supply Voltage Range: 3V to 15V
- Low power consumption: < 1 µA (typical static)
- High noise immunity: 0.45 × VDD (typical)
- Output Drive Current: ±1.0 mA at 5V, ±10 mA at 15V
- Propagation Delay: ~100 ns at 10V
- Compatible with CMOS and TTL logic levels
- Operating Temperature Range: -55°C to +125°C
- Package: 14-pin DIP, SOIC
Applications:
- Digital logic circuits
- Logic gate experiments
- Signal switching
- Control systems
- Combinational logic building
