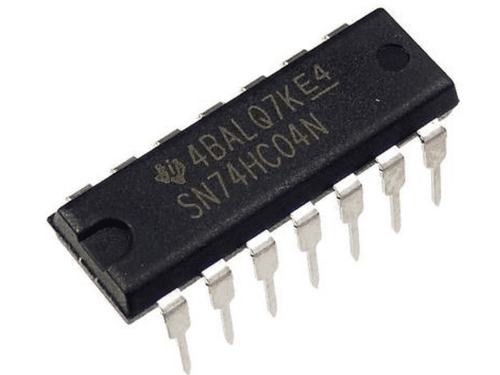

7404 - Hex Inverter
The 7404 is a Hex Inverter logic IC that contains six independent NOT gates. It inverts the input signal and is widely used in digital electronics for signal processing and logic level manipulation.
Specifications:
- Logic Function: Hex Inverter (NOT gates)
- Number of Gates: 6 independent inverters
- Supply Voltage Range: 4.75V to 5.25V (typically 5V)
- High Noise Immunity
- Output Current: ±8 mA
- Typical Propagation Delay: ~10 ns
- Low Power Consumption
- Operating Temperature Range: 0°C to +70°C (commercial)
- Package: 14-pin DIP
Applications:
- Signal inversion
- Logic level manipulation
- Digital signal processing
- Waveform generation
- Basic logic circuits
