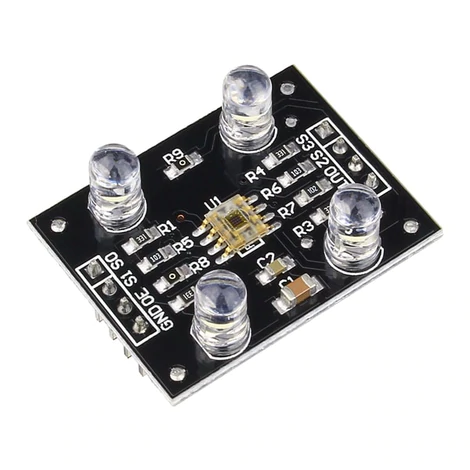

TCS3200 Color Sensor with 4 LEDs

The TCS3200 is an advanced color sensor that enables accurate detection of color information. Capitalizing on the technology of photodiodes and light-to-frequency converters, the TCS3200 is designed to recognize a wide range of wavelengths, allowing for efficient color identification. With built-in RGB (red, green, blue) LEDs, users can obtain precise readings of color values in varying lighting conditions.

Key Features

• Color Detection: The TCS3200 can detect colors by measuring the intensity of red, green, and blue light reflected from an object.
• Adjustable Sensitivity: Sensitivity can be modified via configuration according to specific application needs.
• Multi-Diode Output: It uses an array of photodiodes, organized in a grid, to detect various colors with high accuracy and speed.
• Integrated LEDs: Includes a 4-LED configuration providing illumination in RGB and white light for enhanced color analysis.
• Easy Interface: Provides a simple interface for microcontrollers which makes it manipulable without sophisticated setups.
• Wide Operating Voltage: Operating voltage range from 3V to 5V allowing it to work seamlessly with various microcontrollers.

Applications

The TCS3200 color sensor is versatile and can be utilized in a multitude of applications:

• Robotics: For tasks like color sorting, line following, and environmental monitoring.
• Industrial Automation: Quality control processes where color differentiation is crucial.
• Home Automation: Color detection systems in smart lighting solutions or decor.
• Photography: Color correction tools in image processing to ensure accurate color representation.
• Educational Projects: Excellent for DIY electronics projects, helping students understand color perception and sensor interfaces.

Energy

The TCS3200 operates efficiently within a low power consumption range, making it ideal for mobile applications. Its power usage primarily depends on the operational mode:

• Active Mode: The sensor is fully operational, consuming around 50mA max while gathering color data.
• Sleep Mode: For energy-saving, the sensor can be put into a low power sleep state, reducing its consumption to mere microamps.
• Optimal Usage: It’s recommended to utilize PWM (Pulse Width Modulation) to manage the brightness of the LEDs and further lower power consumption.

How to Use

To utilize the TCS3200 color sensor effectively, follow these guidelines:

• Connecting the Sensor: Connect the sensor’s pins to your microcontroller following the pinout in the datasheet.
• Initialization: After powering up, initialize the sensor using appropriate library functions which encapsulate the complexities of the interfacing.
• Reading Values: Utilize provided library functions to begin reading color measurements which return normalized values for red, green, and blue intensities.
• Calibration: For the accurate understanding of colors, perform calibration with known color samples under standard lighting conditions.

For further technical details and specifications, you can access the complete datasheet here.
