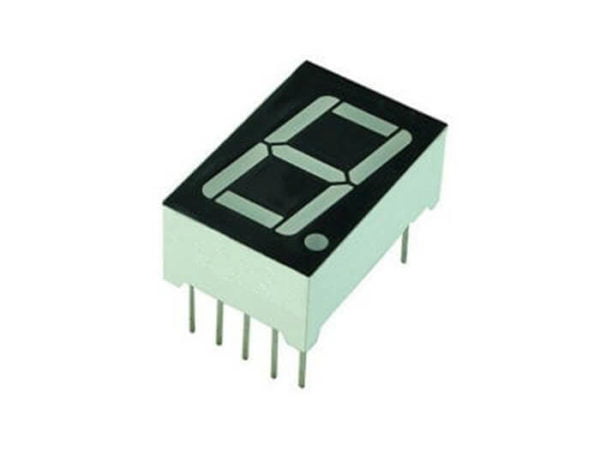

7 Segment Display (1×1) Common Anode 0.5\" Inch

The 7 Segment Display (1×1) Common Anode 0.5\" Inch is a high-quality display component ideal for a wide range of electronic projects. This particular type of display is specifically designed for ease of use and convenience, incorporating a common anode configuration that allows for simplified control using microcontrollers and other digital circuits.

Key Features

• Size: 0.5 inches, making it perfect for compact electronic devices.


• Common Anode Configuration: Allows for straightforward wiring and control using low-side switching.


• High Luminance: Produces bright, clear characters, improving visibility in various lighting conditions.


• Durability: Designed to withstand frequent usage while maintaining excellent performance.


• Multiple Colors: Available in various colors such as red, green, yellow, and blue for versatile application.

Applications

This 7 Segment Display is versatile and suitable for a variety of applications, including but not limited to:

• Digital clocks and timers


• Measurement instruments displaying numerical data


• Home appliances such as microwaves and ovens


• Traffic control signals


• Industrial equipment indicators


• Consumer electronics such as calculators and speedometers

Energy

Operating at a typical voltage of 2.0V per segment, this display is energy-efficient and suitable for battery-powered devices. The low power consumption standards make it essential for projects operating under strict power budgets, providing longevity and efficiency.

How to Use

Using this 7 Segment Display is straightforward. Follow these steps for integration into your project:

1. Connect the common anode pin to the positive voltage source.


2. Connect each cathode pin (a, b, c, d, e, f, g) to a digital output pin on your microcontroller.


3. To light up a segment, set the corresponding output pin to LOW.


4. Use your microcontroller's programming capability to control the segments for displaying numbers and characters.

For more technical specifications and data, please refer to the datasheet.
