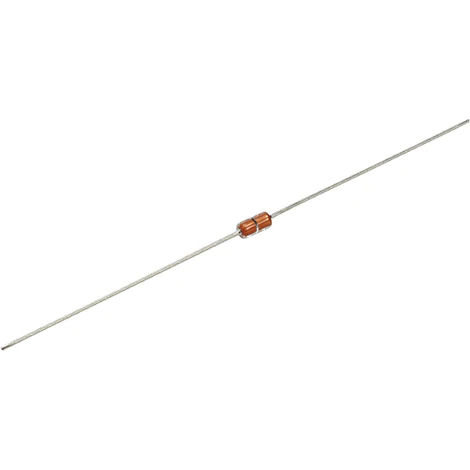

Axial Thermistor – 100k Ohm (NTC)
This is a 100kΩ Negative Temperature Coefficient (NTC) thermistor in an axial through-hole package. As the temperature increases, its resistance decreases, making it ideal for temperature sensing and compensation in electronic devices.
Key Features:
- Resistance: 100kΩ ±1% at 25°C
- Type: NTC Thermistor
- Package: Axial (through-hole)
- Material: Epoxy-coated thermistor bead
- Application Range: General purpose temperature sensing
Technical Specifications:
| Parameter | Value |
|---|---|
| Nominal Resistance | 100kΩ ±1% @ 25°C |
| Beta Value (B25/85) | 3950K ±1% |
| Operating Temperature Range | -40°C to +125°C |
| Max Power Dissipation | 100mW |
| Thermal Time Constant | ~10s (in still air) |
Applications:
- Temperature sensing and control
- Battery pack thermal monitoring
- Consumer electronics
- Thermal compensation in circuits
