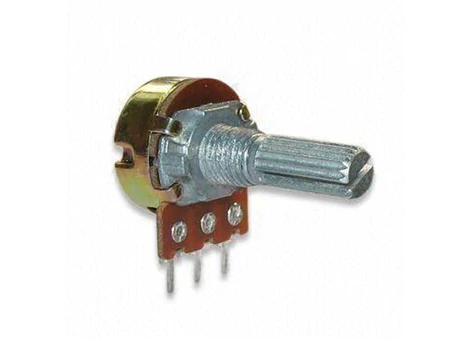

Potentiometer 5 KOHM

Description

The 5 KOHM potentiometer is a three-terminal adjustable resistor that allows you to control voltage and current in electronic circuits. It consists of a resistive element and a wiper that slides over it, allowing for adjustable resistance in a specific range. This versatile component is widely used in various electronic applications, facilitating user interaction by adjusting levels of sound, light, and more.

Key Features

• Resistance Value: 5 KOHM, providing excellent flexibility in circuit design.
• Power Rating: Typically rated at 0.25W, adequate for most low-power applications.
• Adjustment Mechanism: Linear or logarithmic taper options available, catering to specific usage needs.
• Durability: Designed for long life and reliable performance under varying operational conditions.
• Temperature Range: Functional across a broad temperature spectrum, ensuring stable performance in diverse environments.
• Compact Size: Small form factor, allowing for easy integration into many designs.

Applications

Potentiometers are commonly employed in a variety of applications, some of which include:

• Audio equipment: volume controls and tone adjustments.
• Test and measurement equipment: calibrating and adjusting properties of electrical equipment.
• LED dimmers: controlling brightness levels of LED lights.
• Controls for appliances: temperature and speed settings in home devices.
• Robotics and automation: adjusting parameters in servo motors and other actuators.

Energy Efficiency

Utilizing potentiometers effectively can enhance the energy efficiency of your circuits by allowing precise control over power consumption. Adjusting resistance can lead to lower power flows when maximum levels are not required, hence extending the lifecycle of batteries and reducing energy waste.

How to Use

Using a potentiometer in your circuit is straightforward:

1. Identify the Terminals: The three terminals are usually identified as 'A', 'B', and 'W' (Wiper). A and B connect to the power supply.
2. Connect to Circuit: Place the potentiometer in the circuit where you need adjustable resistance.
3. Adjust Resistance: By turning the knob or rotating the shaft, you can effectively adjust the resistance between the wiper and the terminals.
4. Testing: Utilize a multimeter to measure the resistance across the potentiometer to ensure it operates as intended.
