Joystick Shield Module Robotics Control for Arduino

The Joystick Shield Module is an Arduino-compatible expansion board designed to provide a convenient interface for controlling robots, games, and other interactive projects. It integrates a two-axis joystick and multiple push buttons, allowing users to simulate keyboard and mouse inputs or control robotic movements with ease.

📄 Datasheet

• Joystick Shield Module Datasheet (PDF)

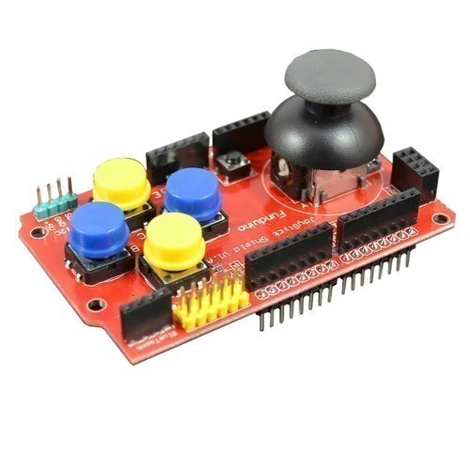

🖼️ Product Images

📐 Specifications

🔌 Pin Configuration

• Joystick X-Axis – Analog pin A0
• Joystick Y-Axis – Analog pin A1
• Joystick Select Button – Digital pin D8
• Button A – Digital pin D2
• Button B – Digital pin D3
• Button C – Digital pin D4
• Button D – Digital pin D5
• Button E – Digital pin D6
• Button F – Digital pin D7

⚙️ Features

• Compatible with Arduino Uno, Mega 1280/2560, and Leonardo
• 2-axis joystick with push-button function
• 7 momentary push buttons for versatile control options
• Selectable 3.3V or 5V operation via onboard switch
• Interfaces for:
  • nRF24L01 RF module
  • Nokia 5110 LCD
  • Bluetooth module (via RX/TX)
  • I2C devices
• Additional interface connector for easy access to all buttons and joystick signals

🧰 Applications

• Robotics control systems
• Game development and prototyping
• DIY remote controllers
• Simulated keyboard and mouse inputs
• Educational projects involving Arduino
