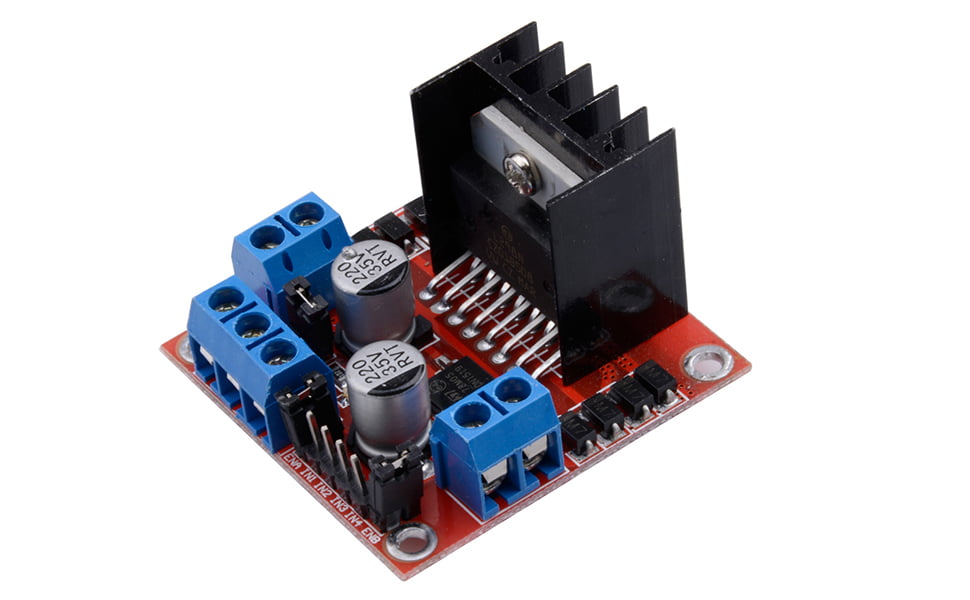

L298N 2A Dual H-Bridge Motor Driver Module

The L298N Dual H-Bridge Motor Driver is a high-current, high-voltage motor driver module that enables you to control the direction and speed of two DC motors or one stepper motor. It is based on the L298N IC, a robust dual full-bridge driver. This module is ideal for Arduino and other microcontroller projects requiring motor control.

📄 Datasheets

• Module Datasheet (PDF)
• L298N IC Datasheet (PDF)

🖼️ Product Images

📐 Specifications

🔌 Pin Descriptions

• IN1/IN2 – Motor A Direction Control
• IN3/IN4 – Motor B Direction Control
• ENA/ENB – Enable (PWM) Motor A/B
• OUT1–OUT4 – Motor Outputs
• 12V – Motor Power Supply (5–35V)
• 5V – Logic Power (if jumper is used)
• GND – Ground

⚙️ Features

• Dual H-Bridge control of 2 DC motors or 1 stepper motor
• Onboard 5V regulator
• Built-in protection diodes and heat sink
• PWM speed control
• Direction control via logic pins

🧰 Applications

• Robotics projects
• Smart cars
• Stepper motor control
• Home automation
